點擊數：2367HR1.25系列單路軟卷卷筒

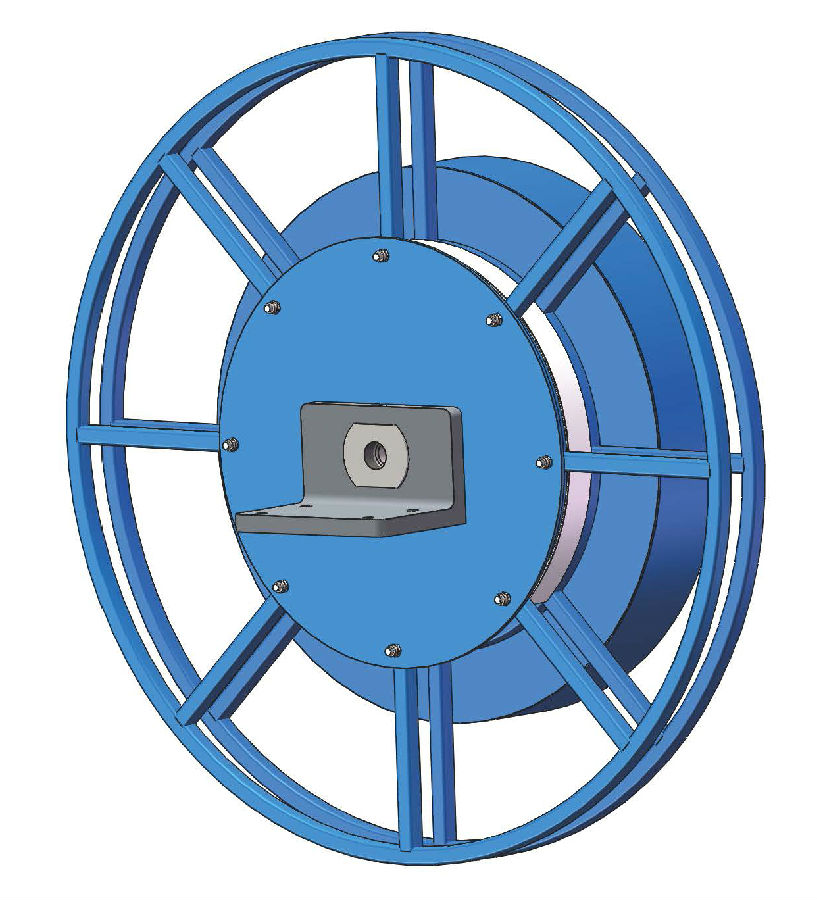

HR1.25系列單管軟管卷筒
單管型｜Single hose reels
最大壓力 | Max. work pressure ：350bar
最大流量 | Max. flow rate ： 135L/min
最大速度 | Max. hose speed : 30M/min
軟管的內徑及通流能力：
軟管內徑 Inside hose | 流量 Flow |
| 8 | 30L/min |
| 10 | 30L/min |
| 12 | 40L/min |
| 16 | 60L/min |
| 19 | 80L/min |
| 25 | 135L/min |
安裝方式 | Mounting
 |  |  |
橫向安裝 Horizontal | 垂直向上 Vertical up | 垂直向下 Vertical down （可要求|On request） |
可選軟管 | Available hose
4SP：合成橡膠4層鋼絲纏繞加強層軟管 | Synthetic rubber with 4 steel braid reinforcement。
2SN：合成橡膠2層鋼絲編織加強層軟管 | Synthetic rubber with 2 steel braid reinforcement 。
軟管內徑Φ Hose Inside diameter | 型號 Type | 最大壓力 Max.pressure | 軟管外徑Φ Outside Hose | 最小彎曲半徑 Min.bending | 重量 Weight kg/m | |
Inch | mm | |||||
1/2" | 12.7 | 2SN | 275bar | 23.1mm | 180mm | 0.65 |
4SP | 415bar | 24.6mm | 230mm | 0.93 | ||
5/8" | 15.9 | 2SN | 250bar | 26.3mm | 200mm | 0.79 |
4SP | 360bar | 28.5mm | 250mm | 1.13 | ||
3/4" | 19 | 2SN | 215bar | 30.2mm | 240mm | 0.95 |
4SP | 350bar | 32 mm | 300mm | 1.53 | ||
1" | 25.4 | 2SN | 165bar | 38.9mm | 300mm | 1.5 |
4SP | 290bar | 39.7mm | 340mm | 2.06 | ||
訂貨實例 | Order Example
| HR1 | R | 800 | 25 | 12 | 2SN |
| 1根軟管卷筒 1 Ports hose reel | R：右旋 | Right L：左旋 | Left | 盤子直徑 Flange Diameter | 設計號 Design | 軟管內徑 Inside Hose | 軟管類型 Hose Type |
| HR：軟管卷筒 | Hose reel CR：電纜卷筒 | Cable reel | |||||

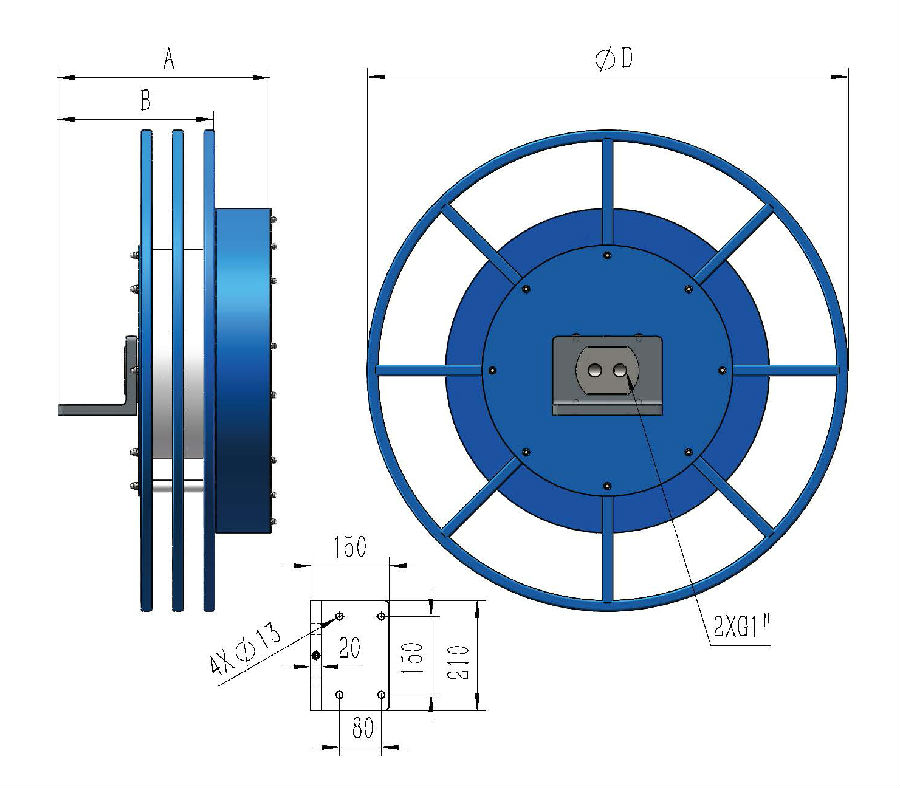

參數表：
型號 Type | 版本 | A | B | D | 軟管內徑 Inside hose | 管型-with hose SB1-1SN-2SN-4SP | |||
mm | 總長 Total length | 工作行程 Usable length | 總長 Total length | 工作行程 Usable length | |||||
2SN | 4SP | ||||||||
HR1R(L).800.25.16.XX | F | 242 | 810 | 5/8" | 14 | 13 | 14 | 13 | |
HR1R(L).800.25.19.XX | 3/4" | 12 | 11 | 12 | 11 | ||||
HR1R(L).800.25.25.XX | 1" | 10 | 9 | 10 | 9 | ||||
HR1R(L).900.25.12.XX | F | 242 | 910 | 1/2" | 21 | 20 | 21 | 20 | |
HR1R(L).900.25.16.XX | 5/8" | 19 | 18 | 19 | 18 | ||||
HR1R(L).900.25.19.XX | 3/4" | 17.5 | 16.5 | 15 | 14 | ||||
HR1R(L).900.25.25.XX | 1" | 13.5 | 12.5 | 11.2 | 10.2 | ||||
HR1R(L).1000.25.12.XX | R | 242 | 1000 | 1/2" | 30 | 29 | 30 | 29 | |
HR1R(L).1000.25.16.XX | 5/8" | 28 | 27 | 28 | 27 | ||||
HR1R(L).1000.25.19.XX | 3/4" | 23 | 22 | 21 | 20 | ||||
HR1R(L).1000.25.25.XX | 1" | 19 | 18 | 16.5 | 15.5 | ||||
HR1R(L).1200.25.12.XX | R | 300 | 1200 | 1/2" | 38 | 37 | 38 | 37 | |
HR1R(L).1200.25.16.XX | 5/8" | 30 | 29 | 30 | 29 | ||||
HR1R(L).1200.25.19.XX | 3/4" | 30 | 29 | 30 | 29 | ||||
HR1R(L).1200.25.25.XX | 1" | 26 | 25 | 23 | 22 | ||||
HR1R(L).1400.25.12.XX | R | 300 | 1400 | 1/2" | 45 | 44 | 45 | 44 | |
HR1R(L).1400.25.16.XX | 5/8" | 40 | 39 | 35 | 34 | ||||
HR1R(L).1400.25.19.XX | 3/4" | 35 | 34 | 35 | 34 | ||||
HR1R(L).1400.25.25.XX | 1" | 30 | 29 | 30 | 29 | ||||
HR1R(L).1600.25.12.XX | R | 300 | 1600 | 1/2" | 50 | 49 | 50 | 49 | |
HR1R(L).1600.25.16.XX | 5/8" | 50 | 49 | 50 | 49 | ||||
HR1R(L).1600.25.19.XX | 3/4" | 45 | 44 | 45 | 44 | ||||
HR1R(L).1600.25.25.XX | 1" | 40 | 39 | 40 | 39 | ||||
