點擊數：2383AT1系列緊湊式單管彈簧卷筒

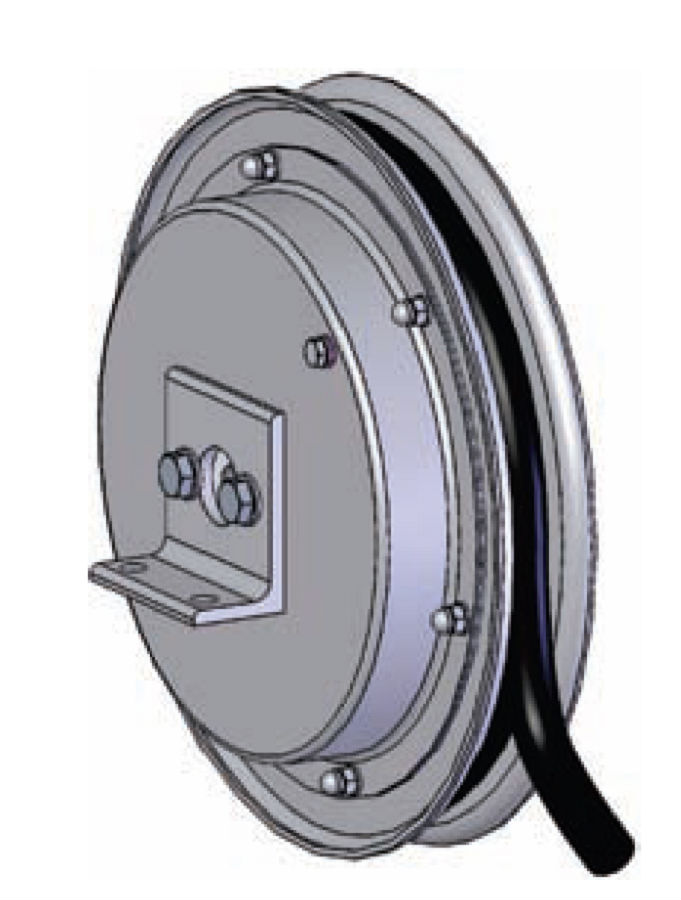

AT1系列緊湊式單管彈簧卷筒
● 液壓軟管及旋轉接頭通徑：1/4” - 3/8” - 1/2”。 ● 防腐聚氨酯噴漆。 ● 防護等級：IP55（標準CEI EN60529）。 ● 根據要求，旋轉方向可逆。 ● 最大流量60L/min ● 壓力從100bar到400bar。
|  |
可選軟管：
軟管內徑Φ | 型號 | 最大壓力 | 軟管外徑Φ | 最小彎曲半徑 | 重量 | |
Inch | mm | |||||
1/4" | 6.3 | R7 | 200 | 12.2 | 30 | 0.19 |
R8 | 345 | 12.2 | 30 | 0.2 | ||
B1 | 275 | 11.7 | 40 | 0.33 | ||
B2 | 375 | 13.5 | 40 | 0.53 | ||
3/8" | 10 | R7 | 160 | 16 | 55 | 0.29 |
R8 | 275 | 16 | 55 | 0.29 | ||
B1 | 212 | 16 | 65 | 0.53 | ||
B2 | 350 | 17 | 90 | 0.8 | ||
1/2" | 12.5 | R8 | 241 | 20 | 75 | 0.42 |
B1 | 175 | 18.3 | 85 | 0.6 | ||
B2 | 310 | 20 | 130 | 1.04 | ||

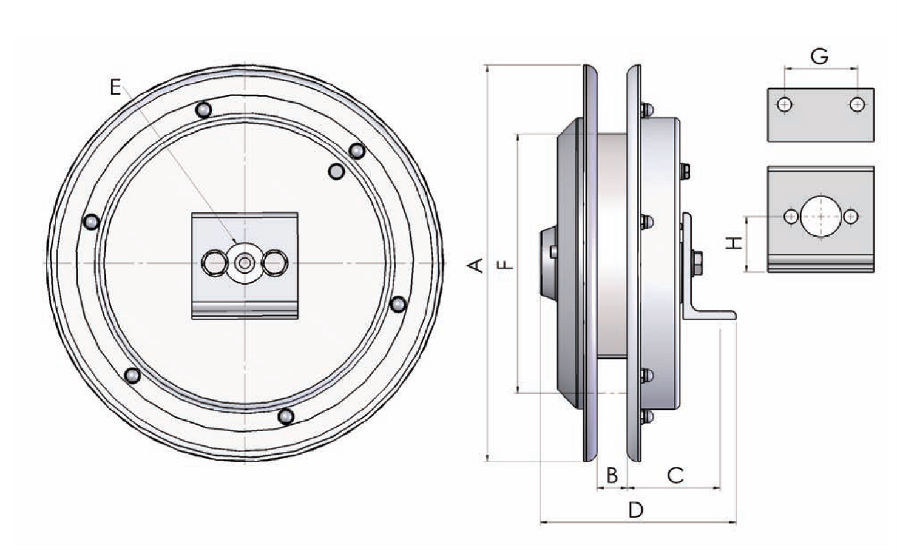

COD. | Boom ex.(m) | A | B | C | D | E | F | G | H | Φ |
AT1-D30-138-XX | 3 | 300 | 19 | 70 | 148 | 3/8" | 196 | 55 | 42 | 10.5 |
AT1-D30-112-XX | 1.5 | 300 | 23 | 70 | 148 | 1/2" | 196 | 55 | 42 | 10.5 |
AT1-D32-138-XX | 3.5 | 320 | 19 | 70 | 148 | 3/8" | 196 | 55 | 42 | 10.5 |
AT1-D32-112-XX | 2.5 | 320 | 23 | 70 | 148 | 1/2" | 196 | 55 | 42 | 10.5 |
AT1-D35-138-XX | 4.5 | 350 | 19 | 70 | 148 | 3/8" | 196 | 55 | 42 | 10.5 |
AT1-D35-112-XX | 3.5 | 350 | 23 | 70 | 148 | 1/2" | 196 | 55 | 42 | 10.5 |
AT1-D37-138-XX | 5.5 | 370 | 19 | 70 | 148 | 3/8" | 196 | 55 | 42 | 10.5 |
AT1-D37-112-XX | 3.5 | 370 | 23 | 70 | 148 | 1/2" | 196 | 55 | 42 | 10.5 |
AT1-D40-138-XX | 6.5 | 400 | 19 | 70 | 148 | 3/8" | 196 | 55 | 42 | 10.5 |
AT1-D40-112-XX | 4.5 | 400 | 23 | 70 | 148 | 1/2" | 196 | 55 | 42 | 10.5 |
AT1-D42-138-XX | 7.5 | 420 | 19 | 70 | 148 | 3/8" | 196 | 55 | 42 | 10.5 |
AT1-D42-112-XX | 5.5 | 420 | 23 | 70 | 148 | 1/2" | 196 | 55 | 42 | 10.5 |
AT1-D47-138-XX | 10 | 470 | 19 | 80 | 158 | 3/8" | 196 | 55 | 42 | 10.5 |
AT1-D47-112-XX | 6.5 | 470 | 23 | 80 | 158 | 1/2" | 196 | 55 | 42 | 10.5 |
AT1-D52-138-XX | 12.5 | 520 | 19 | 80 | 158 | 3/8" | 196 |
